Vertical CNC Machining Center
VMC-1270/1470
- FEATURE
- EXPLAIN
- SPECIFICATIONS
- By the advanced research technology, the machines show the best cutting ability and accuracy. Also, provide the variety of choices to meet customers’ need.
- Casting is stress relieved and seasoning treated for long term accuracy.
- The machine is designed by Finite Element Method (FEM). It provides high rigidity structure.
- Automatic lubrication system provides excellent lubrication to all slide ways.
Choices for Box/Linear Guideway (Option: Roller Type)
Using four high-rigidity linear guide way at the X, Y axis can not only increase the working efficiency, but also keep the perfect accuracy.

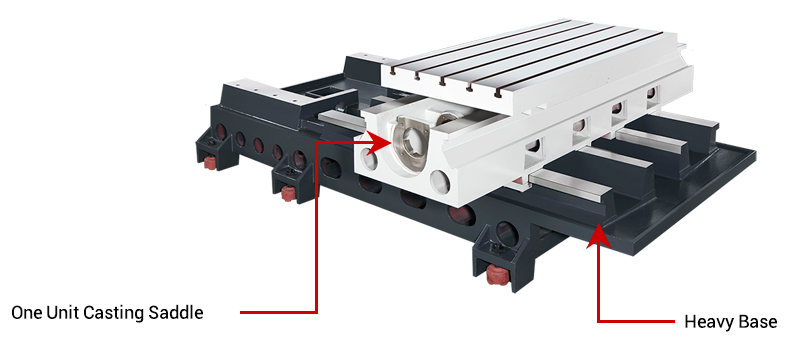

One unit casting at the saddle strengthens the rigidity of the machines.
Specifications
| MODEL | UNIT | VMC-1270 | VMC-1470 | |
|---|---|---|---|---|
| Table | Table Surface | mm (Inch) | 650 x 1350 (25.96 x 53) |
650 x 1550 (25.9 x 61) |
| T-Slots | mm | 18 x 5 x 125 | 18 x 5 x 125 | |
| Table Loading | kgs | 1200 | 1500 | |
| Travel | Travel of X/Y/Z-Axis | mm(Inch) | 1200 x 700 x 650 (47 x 27.5 x 25.6) |
1400 x 700 x 650 (55 x 27.5 x 25.6) |
| Spindle Nose to Table | mm(Inch) | 120-770 (30.3) | 120-770 (30.3) | |
| Spindle Center to Column Surface | mm(Inch) | 829 (32.6) | 829 (32.6) | |
| Door Opening Width | mm(Inch) | 1350 (51) | 1550 (61) | |
| Spindle | Spindle Taper | STD: BT40 OPT: BT50 |
STD: BT40 OPT: BT50 |
|
| Spindle Speed | rpm | BT40 (STD:8000, OPT:10000) BT50 (STD: 6000, OPT: 8000) |
BT40 (STD:8000, OPT:10000) BT50 (STD: 6000, OPT: 8000) |
|
| Rapid Feed Rate | M/min | 15/15/15 | 15/15/15 | |
| Cutting Feed Rate | mm/min | 5-10000 | 5-10000 | |
| Motor | Spindle Motor | HP | BT40:15 BT50: 20 |
BT40:15 BT50: 20 |
| X/Y/Z - Axes Motor | kw | 3/3/3 | 3/3/3 | |
| Miscellaneous | ATC Type | STD: Arm 24T OPT: Arm 32T/40T |
STD: Arm 24T OPT: Arm 32T/40T |
|
| Power Requirement | kw | 40 | 40 | |
| Air Pressure | Kgs/cm2 | 6 | 6 | |
| Cooling Motor | HP | 1.5 | 1.5 | |
| Cooling Tank Capacity | L | 450 | 450 | |
| Machine Weight | kgs | 9300 | 10000 | |
| Machine Size (L x W x H) | mm | 3600 x 2800 x 2730 | 3800 x 2800 x 2730 | |
| Control | FANUC / MITSUBISHI / SIEMENS | |||
