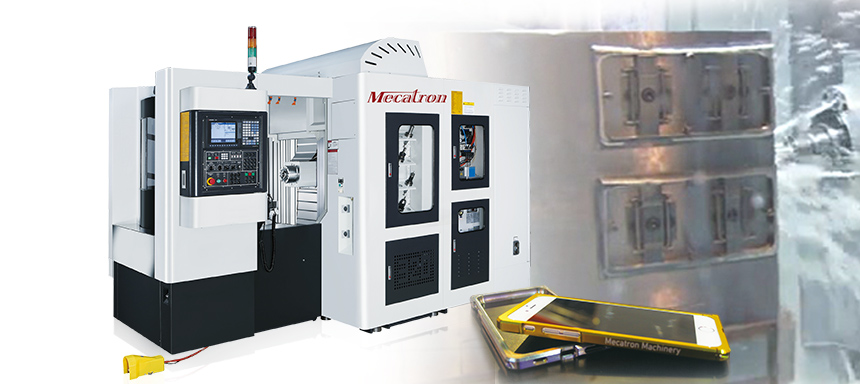

Horizontal Machining Center
HMC-320 / HMC-400(3 Axis Column Moving)
- FEATURE
- EXPLAIN
- SPECIFICATIONS
- Based on an excellent know-how technology ability and good teamwork, Mecatron Machinery Company always overcome lots of difficulties and just go ahead with great passion for machine building.
- Owing to the best quality, technology, R & D and after-sales service to obtain customers trust.
FEATURES AND CHARACTERISTICS
- The high efficiency and high speed parts machining petformance special on the 3C electronic products and small parts jobs.

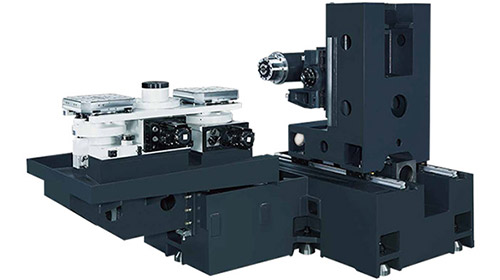

- High Quality Meehanite Casting Iron with coordinate X.Y.Z (3 Axis) traveling column design, stability and accuracy machine’s body structure to hold the working piece in place can quickly and completely corresponds to the automation, and makes the process more efficient.
- ATC automatic tool change systems, has a fast 1.2 second tool change time showing quickly feedback.
- APC table change by servo motor system, the 7 seconds for the fastest speed change time and more accurate positioning. To compare the hydraulic tank will be less noise, and more stability and fest machining efficiency. Also more easy for the service than the hydraulic tank system.
- The small layout to save the factory space problem, can effectively use high prices of land facilities, more effective use of limited space and overall efficiency of the production line planning, with the configuration of the robot arm, effectively improving the multiple advantages.
- One unit strong heavy casting base. To offer stability and accuracy machine’s structure.
Linear Guideways
Use of precision three-axis linear guideways, the travel moves fast and smooth, high-speed and highprecision machining for the needs of customers.
Specifications
| MODEL | HMC-320 | HMC-400 | |
|---|---|---|---|
| Travel | X Travel | 400 | 400 |
| Y Travel | 350 | 350 | |
| Z Travel | 350 | 350 | |
| Distance Between Spindle Nose to Table Center(Z) | 100 - 450 | 100 - 450 | |
| Distance Between Spindle Center to Table Center(Y) | 50 - 500 | 50 - 500 | |
| Max. work Swing Dimensions | Ø320 | Ø400 | |
| Table | Table (Pallet) size | 320 x 320 | 400 x 400 |
| Table (Pallet) Load Capacity | 300 | 300 | |
| Table Index | 0.001° | 0.001° | |
| Pallet Talbe change time | 7 | 7 | |
| Number of Pallet | OPT.2 | OPT.2 | |
| Spindle | Spindle Taper | BT40 | BT40 |
| Spindle Speed | 10000 | 10000 | |
| Front Bearing Dimension | 65 | 65 | |
| Spindle Driving Way | Direct Driving | Direct Driving | |
| Feed Rate | Rapid Feed Rate | 48 | 48 |
| Cutting Feed Rate | 1 - 10 | 1 - 10 | |
| Ball Screw Spec. | Ø40 | Ø40 | |
| Guide Way Spec. | 45/35/35 | 45/35/35 | |
| ACT | Magazine Capacity (Arm Type) | 16 | 16 |
| Max. Tool Diameter | 85 | 85 | |
| Max. Tool Diameter (No adjacent tool) | 115 | 115 | |
| Max. Tool Length | 200 | 200 | |
| Max. Tool Weight | 7 | 7 | |
| Tool to Tool Weight | 1.2 | 1.2 | |
| Chip to Chip time | 1.5 | 1.5 | |
| Motor | Spindle Motor (cont./30min) | 5.5/7.5 | 5.5/7.5 |
| X Axis Servo Motor | 4 | 4 | |
| Y Axis Servo Motor | 4 | 4 | |
| Z Axis Servo Motor | 3 | 3 | |
| B Axis Servo Motor | 2 | 2 | |
| Power Capacity | 40 | 40 | |
| Other | Coolant Tank Capacity | 220 | 220 |
| Machine Dimensions(L/W/H) | 3500 x 2520 x 2500 | 3500 x 2520 x 2500 | |
| Machine Weight(Net) | 5,800 | 6,000 |
