    ML-560S/M, ML-360/Y, ML-600S/M/L, ML-850

    Lathe (Linear Way)

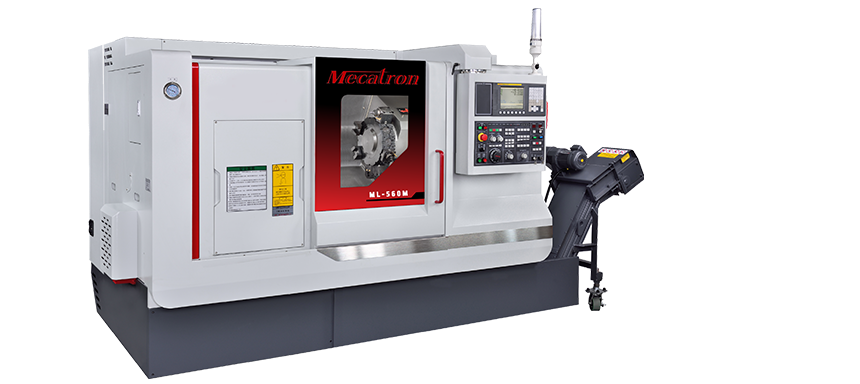

    • ML-560S/M
    • ML-360/Y
    • ML-600S/M/L
    • ML-850

    Specifications

    ITEM ML-560S ML-560M
    Standard C axis
    Capacity Swing over bed Ø560 Ø560
    Swing over saddle Ø420 Ø420
    Max machining dia Ø320 750
    Max work length 320 Ø320 Ø300
    Distance between center 500 570
    Slant angle of bed 30° 30°
    Travels X-axis 190(160 + 30) 190(160+30) 190(150+40)
    Z-axis 360 610
    Main spindle Spindle speeds (rpm) STD:6000;OPT:4900 6000 (A2-5);OPT: 4500(A2-6);
    Spindle nose STD:A2-5, OPT:A2 -6 A2-5; OPT:A2-6
    Chuck size (inch) STD:6", OPT:8" STD:6", OPT:8"
    Spindle bore dia Ø62 Ø55; OPT:Ø62, Ø76
    Draw bar bore STD: Ø 45, OPT: Ø 52 Ø45; OPT: Ø52, Ø65
    Front bearing dia Ø100 Ø100
    Turret Type LS-160A Hydraulic;OPT:Servo Live tooling
    Disc shape / No. of tools STD:8, OPT:10 10 12
    Square tool shank height STD:20 × 20, OPT:25 × 25 25x25 20x20
    Boring bar shank dia Ø40 Ø40 Ø32
    Indexing time (T-T) 0.5 2 0.85
    Feedrates Rapid traverse X:30 , Z:30 X:30, Z:30
    Tailstock Quill dia Ø65 Ø65
    Tapered bore type (live center) MT4 MT-4
    Quill travel 50 50
    Tail stock travel 290
    Motors Main spindle (30min/cont)KW(hp) β8 7.5/11 β8 7.5/11; OPT: β12, α8
    X/Z axis servo motor (kW) X:β8 /3000 1.2 (1.6); Z:β8/3000 1.2 (1.6) X:β8/3000 1.2, Z:β8/3000 1.2;OPT: β12, α8
    Coolant pump 0.96 0.96
    Machine size Height 1795 1844
    Floor space 3200 × 1750 3181X2053
    Weight (w/CNC) 3380 3660
    *Specifications are subject to change without further notice

    Specifications

    ITEM ML-360 ML-360Y
    Standard C-axis
    Capacity Swing over bed Ø600 Ø600
    Swing over saddle Ø400 Ø400
    Distance between center STD: 640 (A2-6); OPT: 595 (A2-8) 660
    Max. machining dia. Ø360 Ø300 Ø130
    Max. machining length STD: 470 (A2-6); OPT: 455 (A2-8) STD:389 (23.43) (A2-6);
    OPT:375 (30.62) (A2-8)
    Slant angle of bed 30˚ 60˚
    Travel range X-axis 215 (180+35) 225 (150+75) 125(65+60)
    Y-axis     80(±40)
    Z-axis 8" :500 / 10" :500 500
    C-axis 360º ( 0.001º ) 360˚
    Spindle Spindle speeds (rpm) STD: 50~4900 (A2-6)
    OPT: 50~3500 (A2-8)    		 STD:4900(A2-6)
    Spindle nose STD: A2-6 ; OPT: A2-8 STD :A2-6
    Spindle bore dia. STD: Ø62 (A2-6) ; OPT: Ø86 (A2-8) STD: Ø62
    Front bearing dia. STD: Ø100 (A2-6) ; OPT: Ø120 (A2-8) Ø100
    Bar capacity STD: 52 ; OPT: 75 STD: 52
    Chuck diameter STD: Ø8" ; OPT: Ø10" STD: Ø 8”
    Turret Type STD: Hydraulic
    OPT: Servo    		 VDI Live-tooling Live-tooling
    Stations STD: 12 ; OPT: 10 STD:12 ; OPT:8 STD:12
    Model LS-200SV; LS-200 TBMA200 TBMR200/12T(short)
    Square tool shank 25 25
    Boring bar shank diameter Ø40 Ø40
    Indexing time (0~180 °) (sec) 2.1/0.87 1.5 0.1
    Live-tool Spindle speeds (rpm) 50~4000 50~4000
    Feedrate Rapid traverse (M/min) X:36, Z:36 X:36, Z:36, W:36, C:200min-¹
    Tailstock Quill diameter Ø85 Ø85
    Tapered bore type MT-4 MT4
    Quill travel 80 80
    Motors Main spindle (kW) STD:α12/7000i 11/15
    OPT:α15/7000i 15/18.5    		 α12/7000i (11/15kW)
    Live-tool (kW) α 3 (3.7/5.5) α3 3.7/5.5
    X/Z-axis servo motor (kW) X:α 12 3.0; Z:α 12 3.0 X:α12 3.0, Z:α12 3.0, W:α12 3.0
    Hydraulic oil pump (kW) 1.5 1.5
    Chip conveyor (kW) 0.2 0.2
    Coolant pump (kW) 0.8 0.8
    Machine size Height (mm) 1845 2241
    Floor space (L x W) 2300 × 1950 2800 × 2070
    Packing (w/conveyor) 3700 x 2270 x 2140 3870 x 2280 x 2550
    Net weight (w/conveyor) (kgs) 4870 5790
    Gross weight (w/conveyor) (kgs) 5120 6300
    *Specifications are subject to change without further notice

    Specifications

    ITEM ML-600S ML-600M ML-600L
    Standard C-axis Standard C-axis Standard C-axis
    Capacity Swing over bed (mm) Ø600 Ø600 Ø600
    Swing over saddle (mm) Ø450 Ø450 Ø450
    Distance between center (mm) STD: 546 (8"); OPT: 536 (10") STD: 776 (10"); OPT: 766 (12") STD: 1276 (10"); OPT: 1266 (12")
    Max. machining dia. (mm) STD: Ø420 Ø360 Ø420 Ø360 Ø420 Ø360
    Max. machining length (mm) STD: 560 (8"); OPT: 540 (10") STD: 780 (10"); OPT: 760 (12") STD: 1280 (10"); OPT: 1260 (12")
    Slant angle of bed 30˚ 30˚ 30˚
    Travel range X-axis (mm) 230 (230) 235 (235) 230 (230) 235 (235) 230 (230) 235 (235)
    Z-axis (mm) 600 (590) 600 (590) 830 (820) 830 (820) 1330 (1320) 1330 (1320)
    C-axis (mm) 360˚(0.001˚)   360˚(0.001˚)   360˚(0.001˚)
    Spindle Spindle speeds (rpm) STD:50~4500(A2-6);
    OPT:50~3500(A2-8)    		 50~3500(A2-8, 75mm 10");
    OPT:50-3000(A2-8, 78mm 10"),    		 50~3500(A2-8, 75mm 10");
    OPT:50-3000(A2-8, 78mm 10")
    Spindle nose STD:A2-6; OPT:A2-8 A2-8 A2-8
    Spindle bore dia. (mm) STD: Ø62(A2-6); OPT: Ø86(A2-8) Ø85; OPT: Ø91, Ø105 Ø85; OPT: Ø91, Ø105
    Front bearing dia. (mm) STD: Ø100(A2-6);OPT: Ø120(A2-8) Ø120; OPT: Ø130, Ø130 Ø120; OPT: Ø130, Ø130
    Bar capacity (mm) STD: 52; OPT: 75 Ø75; OPT: Ø78, Ø91 Ø75; OPT: Ø78, Ø91
    Chuck diameter STD: Ø 8”; OPT: Ø 10” Ø10"; OPT: Ø12" Ø10"; OPT: Ø12"
    Turret Type Hydraulic | VDI Live-tooling Hydraulic | VDI Live-tooling Hydraulic | VDI Live-tooling
    Stations STD:10; OPT:12 STD:12; OPT:8 10, OPT:12 12. OPT:8 10, OPT:12 12
    Model LS-240 TBMA200 LS-240 TBMA200 LS-240 TBMA200
    Square tool shank (mm) 25 25 25 25 25
    Boring bar shank diameter (mm) Ø40 Ø40 Ø40 Ø40 Ø40
    Indexing time (sec) 0.2 1.4 0.73 1.4 0.73
    Feedrate Rapid traverse (M/min) X:30, Z:30 X:30, Z:30 X:30, Z:30
    Tailstock Quill diameter (mm) Ø85 Ø85 Ø85
    Tapered bore type STD:MT 5; OPT:MT 4 MT-5 MT-5
    Tailstock travel (mm) 437(A2-6), 367(A2-8) 720 1090
    Motors Main spindle (kW) STD:α22ip 11/15; OPT:α30ip 15/18.5 STD:α30ip 15/18.5 α30ip 15/18.5
    Live-tool (kW) - α3 3.7/5.5 - α3 3.7/5.5 - α3 3.7/5.5
    X/Z-axis servo motor (kW) X:α12 3.0; Z:α12 3.0 X:α12 3.0, Z:α12 3.0 X:α12 3.0, Z:α12 3.0
    Hydraulic oil pump (kW) 1.5 1.5 1.5
    Chip conveyor (kW) 0.2 0.2 0.2
    Coolant pump (kW) 0.8 0.8 0.8
    Accuracy positioning ±0.003 ±0.003 ±0.005
    repeatability ±0.002 ±0.002 ±0.004
    Power Requirement (KVA) STD:26; OPT:30 STD:26; OPT:30 STD:26; OPT:30
    Machine size Height (mm) 1844 1844 1844
    Floor space (L x W) (mm) 2870 ×1953 3181 x 2053 3762 x 2123
    Packing (w/conveyor) (cm) 383 ×212 ×212 432 x 230 x 221 472 x 229 x 221
    Weight (w/cnc) (kgs) 5430 6050 7000
    Gross weight (w/conveyor) (kgs) 5730 6470 7450
    *Specifications are subject to change without further notice

    Specifications

    ITEM ML-850
    Standard C axis
    Capacity Swing over bed (mm) Ø 850
    Swing over saddle (mm) Ø 600
    Distance between center (mm) STD: 1520 (A2-11)
    Max. machining dia. (mm) Ø720 / Ø600 Ø620 / Ø600
    Max. machining length (mm) STD: Ø720x150 + Ø600x1270 Ø620x185 + Ø600x1250
    Slant angle of bed 45 °
    Travels X-axis (mm) 380(360+20) 380(310+70)
    Z-axis (mm) 1350 1322
    C-axis (mm) 360˚ ( 0.001˚ )
    Spindle Spindle speeds (rpm) 40~2000(4-step gearbox)
    Spindle nose STD:A2-11
    Spindle bore dia. (mm) STD: Ø134(A2-11)
    Front bearing inner dia. (mm) STD: Ø180(A2-11)
    Draw Bar Dia. (mm) STD: Ø120
    Chuck Chuck diameter STD: Ø15"; OPT: Ø18" (manual)
    Turret Type STD: Hydraulic; OPT: Servo, VDI Live-tooling
    Stations STD:8; OPT:12 STD:12
    Model Hydraulic turret BSDT-320-460/12 ODT-N32
    Square tool shank 32x32
    Boring bar shank diameter Ø50
    Indexing time(0~180 °)(sec) 3.2 2.71
    Live-tool Spindle speeds (rpm) 50~3500
    Feedrate Rapid traverse (M/min) X:12, Z:20
    Tailstock Type Automatic
    Quill diameter Ø125
    Quill bore taper MT-5
    Quill travel 160
    Motors Main spindle (kW) STD:α22/7000i 22/26; OPT: α30/6000i 30/37
    Live-tool (kW) α12 (11/15)
    X/Z-axis servo motor (kW) X:α22 4.0; Z:α22 4.0
    Hydraulic oil pump (kW) 2.25
    Chip conveyor (kW) 0.2
    Coolant pump (kW) 0.8
    Accuracy Positioning (mm) ±0.005
    Repeatability (mm) ±0.004
    Power Fanuc (KVA) 380-415/220V STD:30KVA; OPT:40KVA
    Size Height (cm) 248
    Floor space (W x D) (cm) 457 x 219
    Packing (w/conveyor) (cm) 607x229x256
    Net weight (w/conveyor) (kgs) 11820
    Gross weight (w/conveyor) (kgs) 12600
    *Specifications are subject to change without notice
