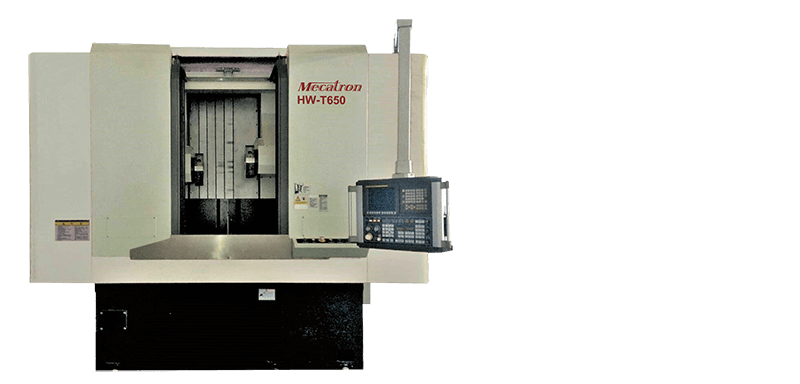

Dual Turret Vertical Lathe
HW-T650/T800
SPECIFICATIONS
| |
MODEL |
Unit |
HW-T650 |
HW-T800 |
| Working Space |
Max swinging dia. |
mm |
850 |
960 |
| Max cutting dia. |
mm |
650 |
800 |
| Max cutting height |
mm |
700 |
850 |
| Tool to table surface |
mm |
700 |
800 |
| TABLE |
Table diameter |
inch |
13"~24" |
16"~26" |
| Max. loading |
kg |
1000 |
1200 |
| Max. torque |
Nm |
620 |
620 |
| Spindle speed |
rpm |
50~2500 |
50~2000 |
| TURRET |
Turret type |
|
Carousel |
Carousel |
| Tool number |
set |
8 |
8 |
| Tool max. loading |
kg |
50 |
50 |
| Tool change time |
sec. |
2 |
2 |
| Tool size |
mm |
□32 Ø50 |
□32 Ø50 |
| TRAVEL AND FEEDRATE |
X-Max travel |
mm |
-30/420 |
-35/495 |
| Z-Max travel |
mm |
500 |
650 |
| X Rapid feedrate |
mm |
-30/390 |
-35/495 |
| Z Rapid feedrate |
mm |
500 |
650 |
| X Rapid feedrate |
mm/min |
15000 |
15000 |
| Z Rapid feedrate |
mm/min |
15000 |
15000 |
| MOTOR |
X-Axial servo motor |
kw |
4 |
4 |
| Z-Axial servo motor |
kw |
3 |
3 |
| Spindle motor |
kw |
45/55 |
60/75 |
| MACHINE LAYOUT |
Machine height |
mm |
2980 |
3460 |
| Machine layout(L*W) |
mm |
2240 x 3750 |
2680 x 4350 |
| Machine weight |
kg |
16500 |
18600 |
| Power required |
kva |
60 |
75 |
*Design and Specifications are subject to change without prior notice.
