    BML-560S/M, BML-600S/M/L, BML-600T/TY, BML-630

    Lathe (Box Way)
    • BML-560S/M
    • BML-600S/M/L
    • BML-600T/TY
    • BML-630

    Specifications

      ITEM BML-560S BML-560M
    Standard C axis Standard C axis
    Capacity Swing over bed Ø560 Ø560
    Swing over saddle Ø420 Ø420
    Distance between centers 537 750
    Max. machining dia. Ø320 Ø300 Ø320 Ø300
    Max. machining length 320 570
    Slant angle of bed 30° 30°
    Travels X-axis 190(160 + 30) 190(150+40) 190(160+30) 190(150+40)
    Z-axis 360 610
    Spindle Spindle speeds (rpm) 6000 (A2-5); OPT: 4500(A2-6); STD:6000 (A2-5); OPT: 4900(A2-6);
    Spindle nose A2-5, OPT:A2 -6 STD: A2-5; OPT:A2-6
    Spindle bore dia. Ø55; OPT:Ø62, Ø76 Ø62
    Front bearing inner dia. (mm) Ø100 STD:Ø80 OPT:Ø100
    Draw bar (mm) Ø45; OPT: Ø52, Ø65 STD:Ø45; OPT: Ø52
    Chuck Chuck diameter (inch) Ø6"; OPT: Ø8" STD: Ø6" ; OPT: Ø8"
    Turret Turret Type Hydraulic; OPT: servo live tooling Hydraulic; OPT: servo Live tooling
    Stations 10 12 STD:8 OPT:10 12
    Model LS-160A*10T LS-160SP*12T LS-160A LS-160SP*12T
    Square tool shank (mm) 25x25 20x20 STD: 20x20 OPT:25x25
    Boring bar shank diameter (mm) Ø40 Ø32 Ø40
    Indexing time (sec) (0~180) 2 0.85 0.5
    Live-tooling Spindle speeds (rpm) 5000   5000
    Feedrate Rapid traverse (M/min) X:20, Z:20 X:20, Z:20
    Tailstock type manual; OPT:programmable manual; OPT:programmable
    Quill diameter (mm) Ø65 Ø65
    Quill bore taper MT-4 MT-4
    Quill travel (mm) 50 50
    Tailstock travel (mm) 290 540
    Motors Main spindle (kW) β8 7.5/11; OPT: β12, α8 STD: β8 7.5/11; OPT: β12, α8
    Live-tool (kW) α2 (2.2 / 3.7)   α2/10000i
    X/Z-axis servo motor (kW) X:β8/3000 1.2, Z:β8/3000 1.2;OPT: β12, α8 X:β8/3000 1.2 Z:β8/3000 1.2; OPT: β12 α8
    Hydraulic oil pump (kW) 0.745 0.745
    Chip conveyor (kW) 0.2 0.2
    Coolant pump (kW) 0.96 0.96
    Accuracy positioning (mm) ±0.003 ±0.004
    repeatability (mm) ±0.002 ±0.003
    Power Fanuc (KVA) 380-415/220V 15KVA 15
    Size Height (mm) 1795 1785
    Floor space (L x W) (mm) 2620X1774 2560X1750
    Packing (w/conveyor) (mm) 3640x2280x2180 4040x2280x2180
    Net weight (w/conveyor) (kgs) 3380 4170
    Gross weight (w/conveyor) (kgs) 3670 4500
    *Specifications are subject to change without further notice

    Specifications

    ITEM BML-600S BML-600M BML-600L
    Standard C-axis Standard C-axis Standard C-axis
    Capacity Swing over bed (mm) Ø600 Ø600 Ø600
    Swing over saddle (mm) Ø450 Ø450 Ø450
    Distance between center (mm) STD: 551 (8"); OPT: 541 (10") STD: 781 (10"); OPT: 771 (12") STD: 1281 (10"); OPT: 1271 (12")
    Max. machining dia. (mm) STD: Ø420 C-axis: Ø360 Ø420 Ø360 Ø420 Ø360
    Max. machining length (mm) STD: 560 (8"); OPT: 540 (10") STD: 780 (10"); OPT: 760 (12") STD: 1280 (10"); OPT: 1260 (12")
    Slant angle of bed 30˚ 30˚ 30˚
    Travel range X-axis (mm) 235 235 230 (230) 235 (235) 230 (230) 235 (235)
    Z-axis (mm) 590 600 830 (820) 820 (820) 1330 (1320) 1330 (1320)
    C-axis (mm) 360˚(0.001˚)
    Spindle Spindle speeds (rpm) STD:50~4500(A2-6);
    OPT:50~3500(A2-8)    		 50~3500(A2-8, 75mm 10");
    OPT:50-3000(A2-8, 78mm 10"),
    50-2500(A2-8, 91mm 12")    		 50~3500(A2-8, 75mm 10");
    OPT:50-3000(A2-8, 78mm 10"),
    50-2500(A2-8, 91mm 12")
    Spindle nose STD:A2-6; OPT:A2-8 A2-8 A2-8
    Spindle bore dia. (mm) STD: Ø62(A2-6); OPT: Ø86(A2-8) Ø85; OPT: Ø91, Ø105 Ø85; OPT: Ø91, Ø105
    Front bearing dia. (mm) STD: Ø100(A2-6);OPT: Ø120(A2-8) Ø120; OPT: Ø130, Ø130 Ø120; OPT: Ø130, Ø130
    Bar capacity (mm) STD: Ø 52; OPT: Ø 75 Ø75; OPT: Ø78, Ø91 Ø75; OPT: Ø78, Ø91
    Chuck diameter STD: Ø 8”; OPT: Ø 10” Ø10"; OPT: Ø12" Ø10"; OPT: Ø12"
    Turret Type Hydraulic VDI Live-tooling Hydraulic | VDI Live-tooling Hydraulic | VDI Live-tooling
    Stations STD:10; OPT:12 STD:12; OPT:8 10, OPT:12 12. OPT:8 10, OPT:12 12
    Model LS-240 TBMA200 LS-240 TBMA200 LS-240 TBMA200
    Square tool shank (mm) 25 25 25
    Boring bar shank diameter (mm) Ø40 Ø40 Ø40
    Indexing time (sec) 0.2 1.4 0.73 1.4 0.73
    Live-tool Spindle speeds (rpm) -   50~4000   50~4000
    Feedrate Rapid traverse (M/min) X:16, Z:20 X:16, Z:20 X:16, Z:20
    Tailstock Quill diameter (mm) Ø85 Ø85 Ø85
    Tapered bore type STD:MT 5; OPT:MT 4 MT-5 MT-5
    Tailstock travel (mm) 437(A2-6), 367(A2-8) 720 1090
    Motors Main spindle (kW) STD:α22ip 11/15; OPT:α30ip 15/18.5 STD:α30ip 15/18.5 α30ip 15/18.5
    Live-tool (kW) - α3 3.7/5.5 - α3 3.7/5.5 - α3 3.7/5.5
    X/Z-axis servo motor (kW) X:α12 3.0; Z:α12 3.0 X:α12 3.0, Z:α12 3.0 X:α12 3.0, Z:α12 3.0
    Hydraulic oil pump (kW) 1.5 1.5 1.5
    Chip conveyor (kW) 0.2 0.2 0.2
    Coolant pump (kW) 0.8 0.8 0.8
    Power Requirement (KVA) STD:26; OPT:30 STD:26; OPT:30 STD:26; OPT:30
    Machine size Height (mm) 1844 1844 1844
    Floor space (L x W) (mm) 2870 ×1953 3181 x 2053 3762 x 2123
    Packing (w/conveyor) (cm) 383 ×212 ×212 432 x 230 x 221 472 x 229 x 221
    Weight (w/cnc) (kgs) 5430 6050 7000
    *Specifications are subject to change without notice

    Specifications

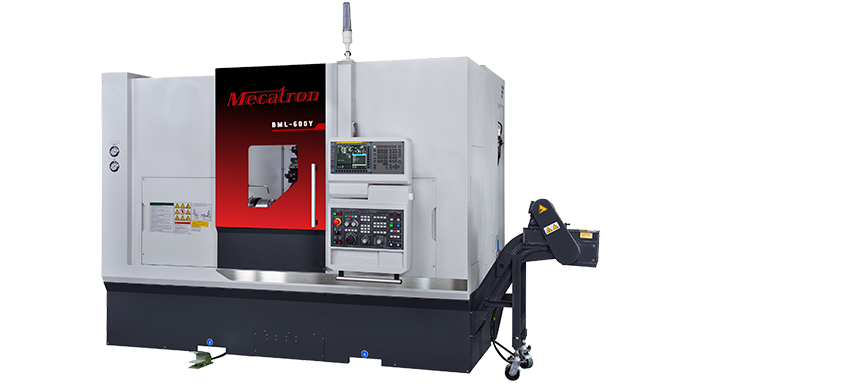

    ITEM BML-600T BML-600TY
    Standard Extension
    Capacity Swing over bed Ø600 Ø 600
    Swing over saddle Ø450 Ø 450
    Max. machining dia. Ø160 Ø 220
    Max. machining length STD:389 (23.43) (A2-6);
    OPT:375 (30.62) (A2-8)    		 STD:389 (A2-6);
    OPT:375 (A2-8)
    Distance between noses 774 774
    Slant angle of bed 30˚ 60˚
    Travel range X-axis 774 (30.47) 230(210+20) 168(160+8)
    Y-axis - 60(30+30)
    Z-axis 500 500
    C-axis 360˚ ( 0.001˚ ) 360˚ ( 0.001˚)
    W-axis 450 450
    Spindle Spindle speeds (rpm) Main spindle
    STD:50~4500(A2-6);
    OPT:50~3500(A2-8)    		 Sub-spindle
    STD:A2-5
    Spindle nose STD:A2-6; OPT:A2-8 ,
    Built-in SpindleA2-6    		 STD:A2-5
    Spindle bore dia. STD: Ø62(A2-6); OPT: Ø86(A2-8) Ø 45
    Front bearing dia. STD: Ø100(A2-6); OPT: Ø120(A2-8) Ø 80
    Bar capacity STD: 52; OPT: 75 Ø 35
    Chuck diameter C: Ø 8”; C(OPT): Ø 10” C: Ø 8”. W: Ø 6”; C(OPT): Ø 10”
    Turret Type Live-tooling Live-tooling
    Stations STD:12; OPT:8 STD:12; OPT:8
    Model TBMR200/12DX(long) TBMR200/12DX(long)
    Square tool shank 25 25
    Boring bar shank diameter Ø40 Ø40
    Indexing time (sec) 0.1 0.1
    Live-tool Spindle speeds (rpm) 50~4000 50~4000
    Feedrate Rapid traverse (M/min) X:16, Z:20, W:16, C:200min-¹ X:16, Z:20, Y:8, W:16, C:200min-¹
    Tailstock Quill diameter - -
    Motors Main spindle (kW) STD:α22ip 11/15; OPT:α30ip 15/18.5; STD:α22ip 11/15; OPT: α30ip 15/18.5;
    Sub-spindle(kW) α6 5.5/7.5 α 6 5.5/7.5
    Live-tool (kW) α3 3.7/5.5 α 3 3.7/5.5
    X/Z-axis servo motor (kW) X:α12 3.0, Z:α12 3.0, W:α12 3.0 X:α12 3.0, Z:α12 3.0, Y:α12 3.0, W:α12 3.0
    Hydraulic oil pump (kW) 1.5 1.5
    Chip conveyor (kW) 0.2 0.2
    Coolant pump (kW) 0.8 0.8
    Power Requirement (KVA) STD:30; OPT:34 STD:34; OPT:38
    Machine size Height 1844 2241
    Floor space (L x W) 2870 ×1953 3000 × 1956
    Weight (w/cnc) (kgs) 6200 402 × 215 × 255
    *Specifications are subject to change without notice

    Specifications

    ITEM BML-630
    Capacity Swing over bed Ø 630
    Swing over saddle Ø 450
    Distance between center STD:1891 (A2-8) ; OPT:1863 (A2-11)
    Max. machining dia. Ø 510
    Max. Machining length 1526 (A2-8); OPT:1475 (A2-11)
    Distance between noses -
    Slant angle of bed 45°
    Travel range X-axis 290 (255+35)
    Z-axis 1590
    C-axis 360° ( 0.001° )
    Spindle Spindle speed (rpm) STD:50~2500(A2-8) ;
    OPT:50~2000(A2-11)
    Spindle nose STD:A2-8; OPT:A2-11
    Spindle bore dia. STD:Ø 105(A2-8) ; OPT: Ø134(A2-11)
    Front bearing dia. Ø 130 (A2-8) ; OPT: Ø180(A2-11)
    Bar capacity STD: Ø 90 (A2-8); OPT: 116
    Chuck diameter STD: Ø 12”; OPT: Ø 15”
    Turret Type Hydraulic VDI Live-tooling
    Stations STD:10, OPT:12 STD:12, OPT:8
    Model LS-250H TBMA250
    Square tool shank 25
    Boring bar shank diameter Ø40 Ø50
    Indexing time (sec) 0.15
    Live-tool Spindle speeds (rpm) -
    Feedrate Rapid traverse (M/min) X: 20, Y: 20
    Tailstock Quill diameter Ø 125
    Tapered bore type STD:MT 5
    Quill travel 120
    Motors Main spindle (kW) STD:22/26;
    OPT: 30/37    		 STD: α22I 22/26;
    OPT: α30I 30/37; C-axis: αip40 18.5/22
    Live-tool (kW) - α3 3.7/5.5
    X/Z-axis servo motor X:α22 4.0, Z:α22 4.0
    Hydraulic oil pump (kW) 2.25
    Chip conveyor (kW) 0.2
    Coolant pump (kW) 0.96
    Power Requirement (KVA) STD: 30
    Machine size Height 2200
    Floor space (LxW) 5325 x 1950 5480 x 1950
    Packing (w/conveyor) 569 x 221 x 250 569 x 221 x 250
    Weight (w/cnc) (kgs) 9770 9620/10757 (Steady rest)
    *Specifications are subject to change without notice
