Fully Automatic Centrifugal Filter
CF Models
Application number in patent application:
Taiwan No.: M656428
China No.: ZL202420588063.2
- FEATURE

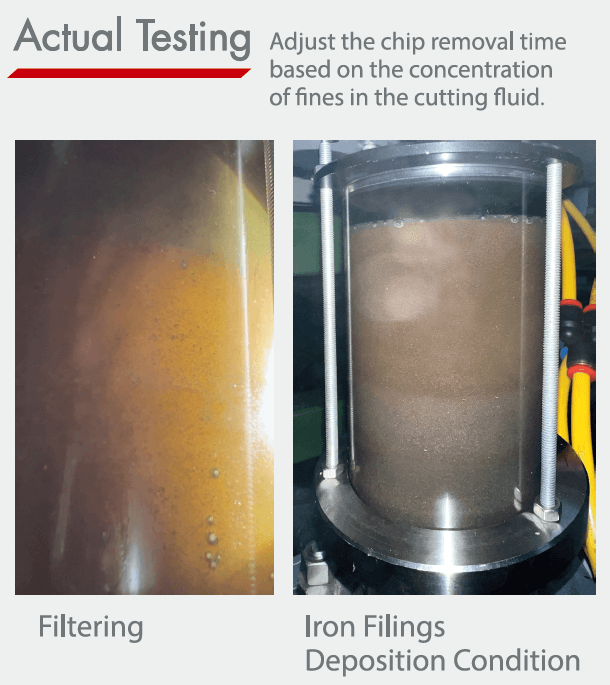

- ACTUAL TESTING
- SPECIFICATIONS
- Fully automatic filtering and rapid chip removal
- Filtration efficiency up to 95%
- Saves on cutting fluid expenses
- Compact size, easy to install
- Suitable for the grinding industry, glass industry, and semiconductor industry
- Applicable for grinding machines, glass, and wafer processing
- No consumables, green energy, and environmentally friendly
FIXED BEAM
| CF-600 | CF-1200 | ||
|---|---|---|---|
| Capacity | 60 L/min. | 120 L/min. | |
| Filtration Precision | 30µ | ||
| Machine Size | 900*600*1350 mm | ||
| Machine Weight | 80 kg | 90 kg | |
| Filtration Solution | Water-soluble, Oil-based | ||
| Filtration Material | Metal, Non-metal, Glass | ||
| Filtration Purpose | Metalworking, Non-metalworking, Grinding | ||
