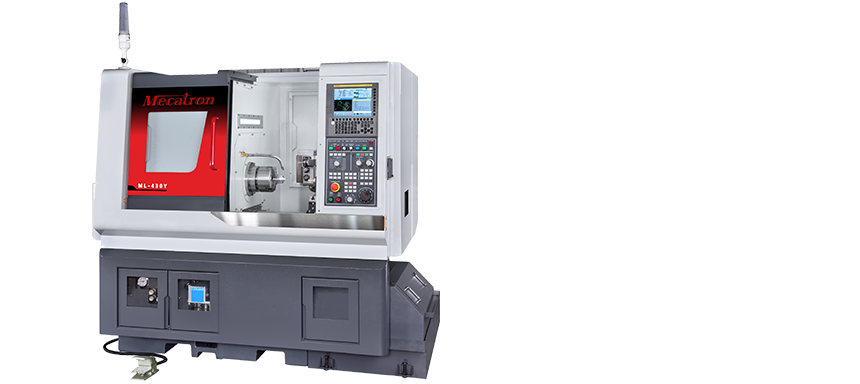

ML-430(S) |
ML-430(T) |
ML-430(P) |
ML-430(Y) |
| Capacity |
Swing over bed (mm) |
Ø430 |
Ø430 |
Ø430 |
Ø430 |
| Swing over saddle (mm) |
Ø160 |
Ø160 |
Ø160 |
Ø160 |
| Max. machining dia. (mm) |
Ø430 |
Ø430 |
Ø430 |
Ø430 |
| Max. machining length (mm) |
240 |
240 |
240 |
240 |
| Slant angle of bed ( ° ) |
0° |
0° |
0° |
0° |
| Travel range |
X-axis (mm) |
350 |
350 |
350 |
350 |
| Z-axis (mm) |
320 |
320 |
320 |
320 |
| Y-axis (mm) |
─ |
─ |
─ |
136.5 |
| C-axis ( ° ) |
OPT:360°(0.001") |
OPT:360°(0.001") |
360°(0.001") |
360°(0.001") |
| Spindle |
Spindle speeds (rpm) |
6000 |
6000 |
6000 |
6000 |
| Spindle nose |
A2 -5 |
A2 -5 |
A2 -5 |
A2 -5 |
| Front bearing dia. (mm) |
Ø80 |
Ø80 |
Ø80 |
Ø80 |
| Spindle bore dia. (mm) |
Ø56 |
Ø56 |
Ø56 |
Ø56 |
| Draw bar dia. (mm) |
Ø45 |
Ø45 |
Ø45 |
Ø45 |
| Chuck |
Chuck diameter (in.) |
6" |
6" |
6" |
6" |
| Turret |
Type |
Gang |
STD:Hydr. OPT:Servo |
Live-tooling |
Live-tooling |
| Stations |
6 |
8 |
12 |
5 |
| Square tool shank (mm) |
20X20 |
20X20 |
16X16 |
20X20 |
| Boring bar shank dia. (mm) |
Ø25 |
Ø25 |
Ø20 |
Ø25 |
| Live tooling |
Driven by |
─ |
─ |
Gear |
Gear |
| Spindle speeds (rpm) |
─ |
─ |
5000 |
4000 |
| Tool shank |
─ |
─ |
VDI20 ER16 |
ER16 |
| Feedrate |
Rapid traverse (m/min) |
X:30 Z:30 |
X:30 Z:30 |
X:30 Z:30 |
X:30 Y:18 Z:30 |
| Motor |
Spindle motor (kW) |
5.5/7.5 |
5.5/7.5 |
5.5/7.5 |
5.5/7.5 |
| Live-tooling servo motor (kW) |
─ |
─ |
1.1/1.2 |
─ |
| X-axis servo motor (kW) |
1.2 |
1.2 |
1.2 |
1.2 |
| Y-axis servo motor (kW) |
─ |
─ |
─ |
1.2 |
| Z-axis servo motor (kW) |
1.2 |
1.2 |
1.2 |
1.2 |
| Y-axis live tooling motor (kW) |
─ |
─ |
─ |
0.75 |
| Hydraulic oil pump (kW) |
0.75 |
0.75 |
0.75 |
0.75 |
| Coolant pump (kW) |
0.96 |
0.96 |
0.96 |
0.96 |
| Machine size |
Floor space (L x W) (cm) |
210x203 |
210x203 |
210x203 |
210x203 |
| Height (cm) |
212 |
212 |
212 |
212 |
| CNC Controller |
Model |
FANUC 0i - TF(3) |
FANUC 0i - TF(3) |
FANUC 0i-TF(1) |
FANUC 0i-TF(1) |
