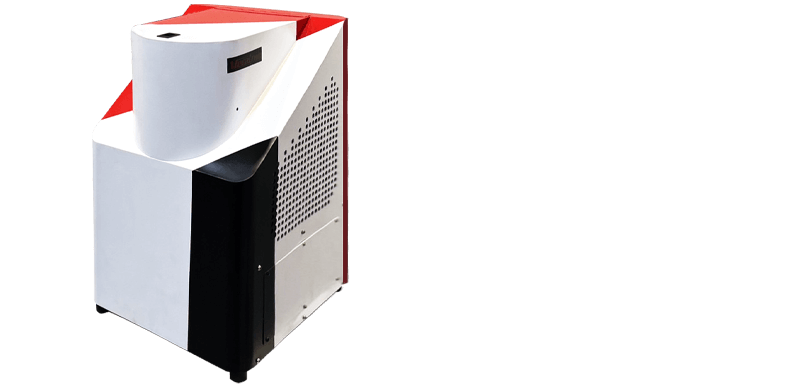

Fully Automatic High-speed Centrifugal Filter
AS Models
Application number in patent application:
Taiwan No.:112201518 and 112201519
China No.:202320274283.3 and 202320275153.1
- FEATURE

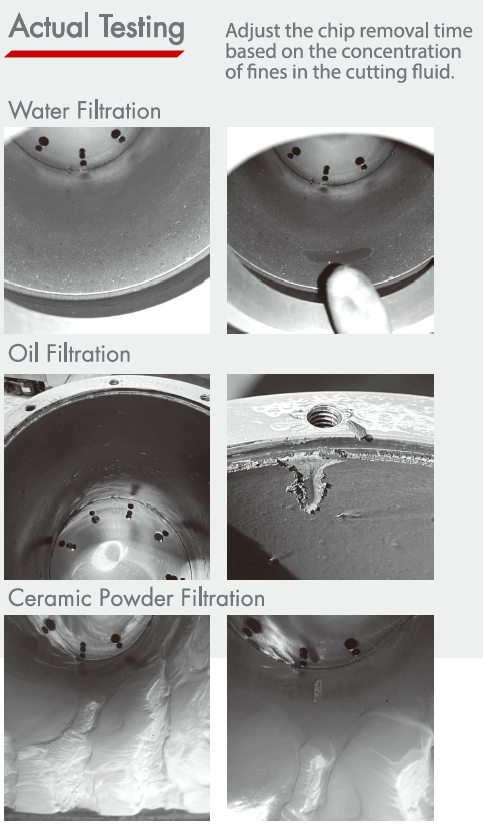

- ACTUAL TESTING
- SPECIFICATIONS
- Fully automatic filtering and rapid chip removal
- Filtration efficiency up to 95%
- Saves on cutting fluid expenses
- Compact size, easy to install
- Suitable for the grinding industry, glass industry, electronics ceramics industry, and semiconductor industry
- Applicable for grinding machines, glass, graphite, wafer, and ceramic processing
- No consumables, green energy, and environmentally friendly
- Automatic impurity scraping, saving time and costs
FIXED BEAM
| AS-120 | AS-200 | Optional | |
|---|---|---|---|
| Centrifugal Speed | 3000 ~ 6000 rpm | 8000 rpm | |
| Capacity | 12 L/min. | 20 L/min. | - |
| Filtration Precision | Standard 10µ | Premier 3µ, requires cooling unit |
|
| Machine Size | 530*400*670 mm | 530*400*870 mm | - |
| Filtration Solution | Water-soluble, Oil-based | ||
| Filtration Material | Metal, Non-metal, Glass, Graphite | ||
| Filtration Purpose | Metalworking, Non-metalworking, Grinding | ||
