    VMC-400P/500P/600P/700P

    VMC With APC System
    • FEATURE
    • EXPLAIN
    • SPECIFICATIONS

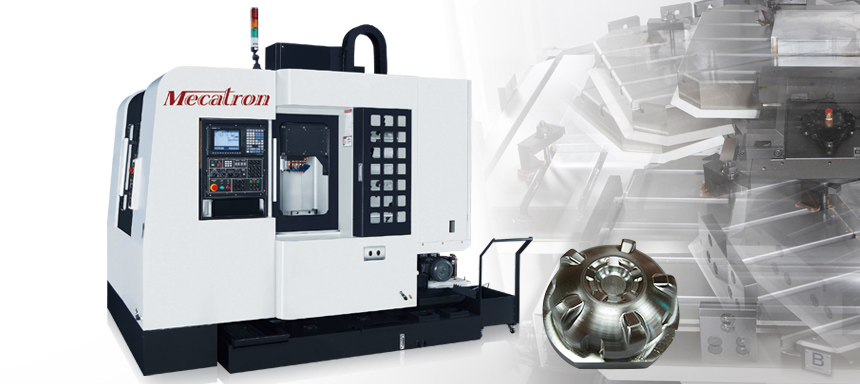

    A space-saving, high-precision and high-performance Vertical CNC Machining Center with two pallets.

    AUTOMATIC PALLET CHANGE SYSTEN

    High Productivity and Quality Solution

    Automatio pallet changer increases labour productivity, enables workpiece clamping, releasing and gauging on the pallet outside the machine's working space which parts are being machined on the order pallet. The pallet changers are not only cutting cost in manufacturing but also helping customer to improve and monitor quality.
    The pallet changer is achieved by the combination of servo motor and hydraulic hirth gear drive. This structure ensures high-speed change and high reliability.

    VMCs with Automatic Pallet Change

    Vertical machininh center with automatic pallet change can be applied to do complex machining such as milling, drilling, boring, reaming and facing operations etc.
    The exchange mechanism directly on the base; easy to install, good water resistance and to avoid waste of space.
    Repairs and maintenance are also very convenient and simple.
    For the quantitative needs of modular production and product accuracy and machining speed requirements, machine with APC (Automatic Pallet Changers) is the best choice.

    Pallet exchange driven by Servo Motor

    Driven by servo motor, the pallet exchanger offer faster exchange speed, low noise, easy installation, maintenance opportunities for small and easy.
    Because the servo motor positioning accuracy, excellent precision, lower defect rate, enhance the effectiveness of machining operations, can effectively reduce customer costs, improve profitability and compertitiveness.

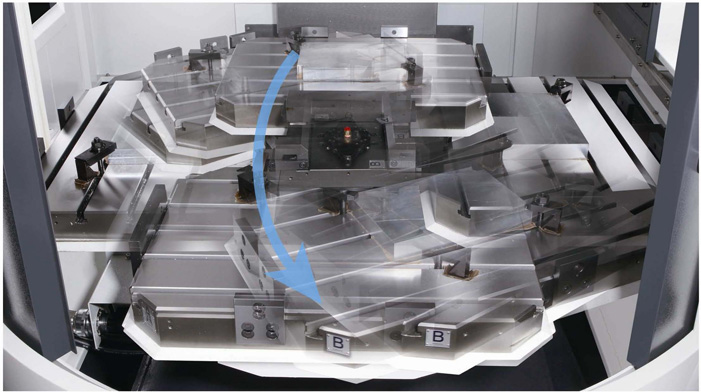

    Locking by Taper Cone

    Each table with four taper cones to do positioning and locking by hydraulic. There are blowing devices and hermetic detector inside four taper cones can remove thr chips during the table exchange, to prevent the error of the positioning accuracy.
    Ensure that the positioning accuracy and repeatability accuracy ±0.005mm or less.


    TYPE
    ITEM
    		 SERVO MOTOR HYDRAULIC
    Fast Pallet Change v ×
    Fast Machining Efficiency v ×
    Mechanism Stability v ×
    Repair and Maintenance Easy v ×
    Machining Precision Stability v ×
    Low Noise v ×

    Specifications

      MODEL UNIT VMC-400P VMC-500P VMC-600P VMC-700P
    Table Table surface (two pcs)   320 x 400 400 x 560 400 x 720 500 x 700
    Table loading kgs 200 200 250 250
    Travel Travel of X/Y/Z-axis mm 400 x 400 x 400 600 x 400 x 400 750 x 450 x 500 700 x 500 x 500
    Spindle noes to table mm 100 - 500 100 - 500 120 - 620 120 - 620
    Spindle center to column surface mm 550 550 600 680
    Spindle & Servo motor Spindle taper   BT-40 BT-40 BT-40 BT-40
    Spindle speed rpm 60-8000
    (10000 / 12000)
    opt    		 60-8000
    (10000 / 12000)
    opt    		 60 - 8000
    (10000 / 12000)
    opt    		 60~8000
    (10000 / 12000)
    opt
    Spindle motor kw 5.5/7.5 5.5/75 7.5/11 7.5/11
    X/Y/Z Axis servo motor kw 1.5/1.5/2 1.5/1.5/2 2/2/2 2/2/2
    Rapid feed rate of X/Y/Z m/min 24/24/24 24/24/24 24/24/24 24/24/24
    Cutting feed rate m/min 1 - 10 1 - 10 1 - 10 1 - 10
    ACT ATC Type   Arm type Arm type Arm type Arm type
    Tool capaticy pcs 24 24 24 24
    Max.tool weight kgs 7 7 7 7
    Max.tool length mm 250 250 250 250
    Max.tool diameter mm 80 80 80 80
    APC Reciprocating time/tool change time sec 2/1.8 2/1.8 2/1.8 2/1.8
    Changing time sec 7 7 7 7
    Driven by servo motor kw 1.5 1.5 2 2
    Rotary Way angle 180 180 180 180
    Miscellaneous Air pressure kgs/cm² 6 6 6 6
    Machine weight kgs 5000 5500 6000 6800
    Machine size (L x W x H) mm 2400 x 2200 x 2550 2400 x 2200 x 2550 2620 x 2250 x 2770 2800 x 2250 x 2770
    Control   FANUC / MITSUBISHI / SIEMENS
    *Design and Specifications are subject to change without prior notice.
