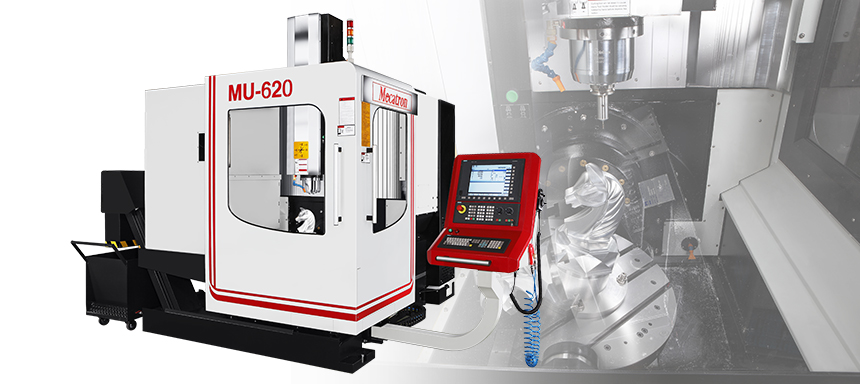

5 Axis Machining Center
MU-620
- FEATURE
- EXPLAIN
- SPECIFICATIONS
- MU-620 is designed for more complicated and higher precision machining requirement.
- All the machines are equipped with high-level controller.
- The precision surface machining can be completed in the shortest time.
- It can not only improve productivity, but also extend the application range.
B And C Axis Rotary Table

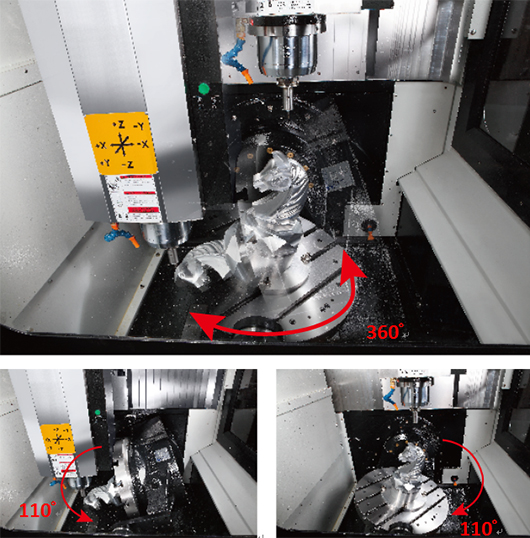

- The machine is equipped with B and C axis rotary table to achieve 5 axis machining.
- The great ability of anti-vibration can achieve perfect machining accuracy.
- Complex machining can fulfill wider product range and higher demand.
- B Axis Tilting Angle: -110° ~ +110°
- C Axis Rotating Angle: 360°
- Table Loading: 200 kg (90°) / 300 kg (Horizontal)
Specifications
| MODEL | MU-620 | |
|---|---|---|
| Table | Table Surface | Ø650 |
| Center Hole Size | Ø55H7x12 in depth | |
| T-Slots | 18x5x100 | |
| Max. Workpiece Size | Ø580 (50+R438)L | |
| Table Loading | 200 kg (90°) / 300 kg (Horizontal) | |
| Travel | Travel of X/Y/Z Axis | 620/510/460 |
| B Axis Tilting Range | ±110° | |
| C Axis Rotating Range | 360° | |
| Spindle Nose to Table | 150 | |
| Spindle | Spindle Transmission Type | Direct Drive |
| Tool Shank | 40 (BT/CAT/ISO) | |
| Spindle Speed | 12000 rpm (OPT:15000 rpm) | |
| Cutting Feed Rate | 1-20000 mm/min | |
| X/Y/Z Rapid Feed | 40/40/40 m/min | |
| B/C Rotation Rate | 25 rpm | |
| Motor | Spindle Motor | 9/11 kw (Siemens) |
| X/Y/Z Axis Motor | 3.1/3.3/4.9 kw (Siemens) | |
| B/C Axis Motor | 8.2/3.3 kw (Siemens) | |
| Miscellaneous | ATC type | Arm 24T (OPT: Arm 32T) |
| Power Requirement | 30 kw | |
| Air Pressure | 6 kg/cm2 | |
| Cooling Tank Capacity | 250 L | |
| Machine Weight | 8500 kg | |
| Machine Size (L x W x H) | 3170x3900x2900 | |
| Control | Siemens/ Heidenhain /Fanuc (Auto 5 axis or 4+1 axis) |
|
